Infrastructure
Setting a benchmark in heavy steel fabrication for the industrial sector
We aim to deliver customized designs that are cost-effective solutions for steel buildings. We strive to manufacture high-quality standards and are committed to providing top-notch services to our customers. Our commitment to excellence helps us provide quality products, speed, safety, and exceptional services. The primary goal is to offer a cost-effective solution for the fabrication and erection of composite steel girders for ROBs, RUBs, FOBs, pre-engineered buildings, and multi-storied structures while ensuring the highest quality standards.
350+
Projects Completed
Tons
90,000
40,000
Tons Capacity Annual
25+
Industries

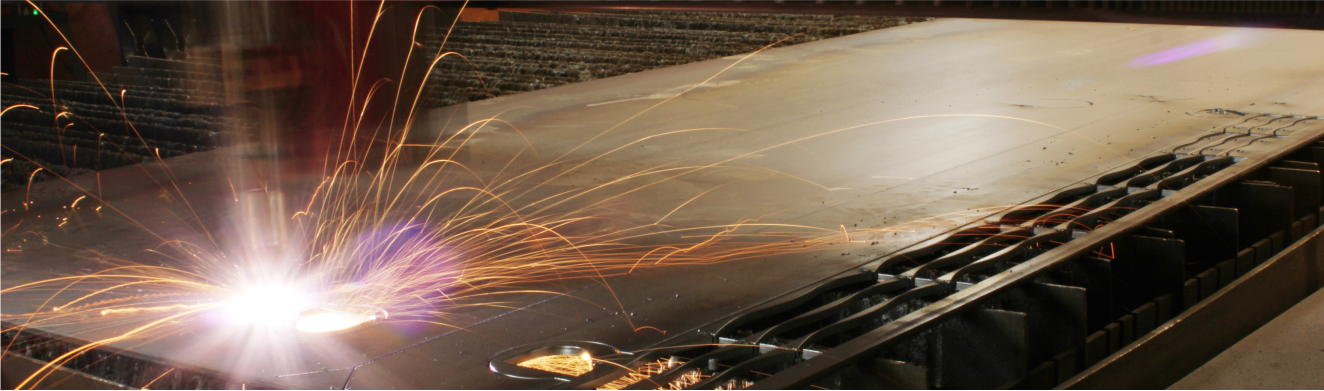

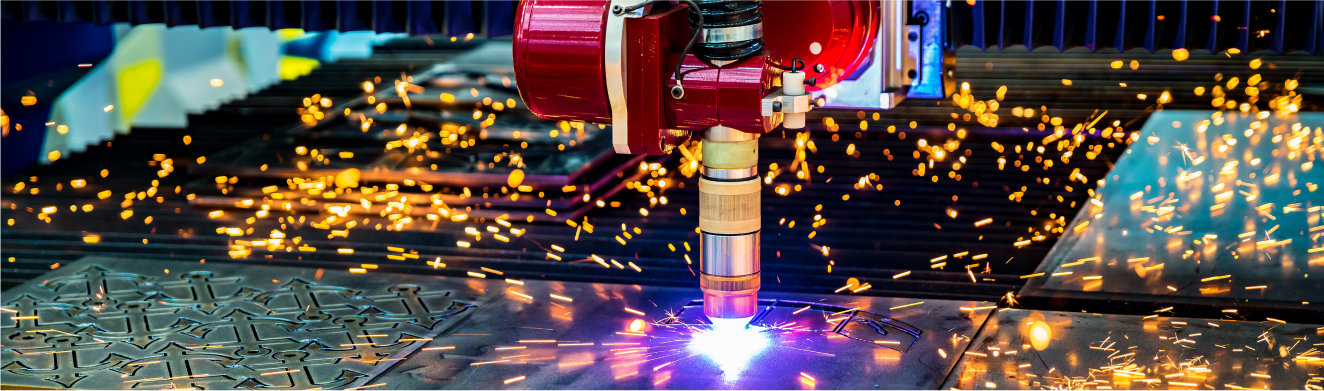

Plasma Cutting
Transmission System
Dual linear motion guide for transverse and longitudinal drive
Model
ECO Sharp Cut -1530
Cutting Width
1250 mm
Cutting Length
2500 mm
Plasma Controller
NC Controller
Y-Axis Frame
Heat-resistant, heavy-duty iron frame
Stations
One plasma station
Power Source
Powermax 45, Powermax 65, CUT-100
Software
Fast Cam (Basic) – Australia
CNC Beam Welding Line
Web Height
Up to 3000 mm
Flange Width
Up to 1200 mm
Beam Length
Up to 12,500 mm
Web Thickness
Up to 40 mm
Flange Thickness
Up to 100 mm
Beam Types
H, I, Star & Box Beams
Features
Robotic clamping, web plate alignment, and automated straightening of girders

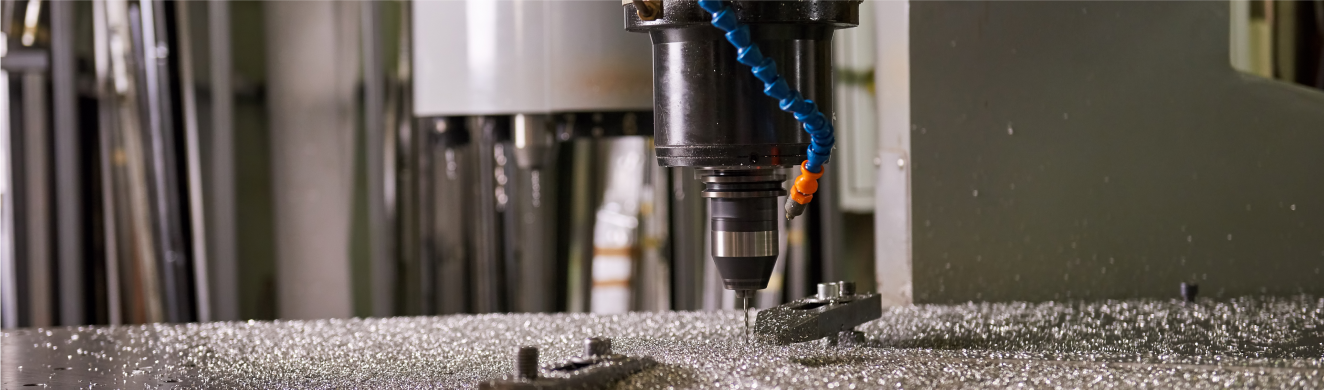

CNC Drilling Machine
Working Area
2.0 m x 4.0 m
Table
Includes drilling table
Hydraulic Drilling Spindles
2
Positioning Speed
9 m/min
Positioning Accuracy
±0.1 mm
Capacity
Hole diameter 50 mm, maximum thickness 100 mm
